Aluminium

EN AW-6063 T6

EN 755-2

Aluminium Round Tube 6063-T6

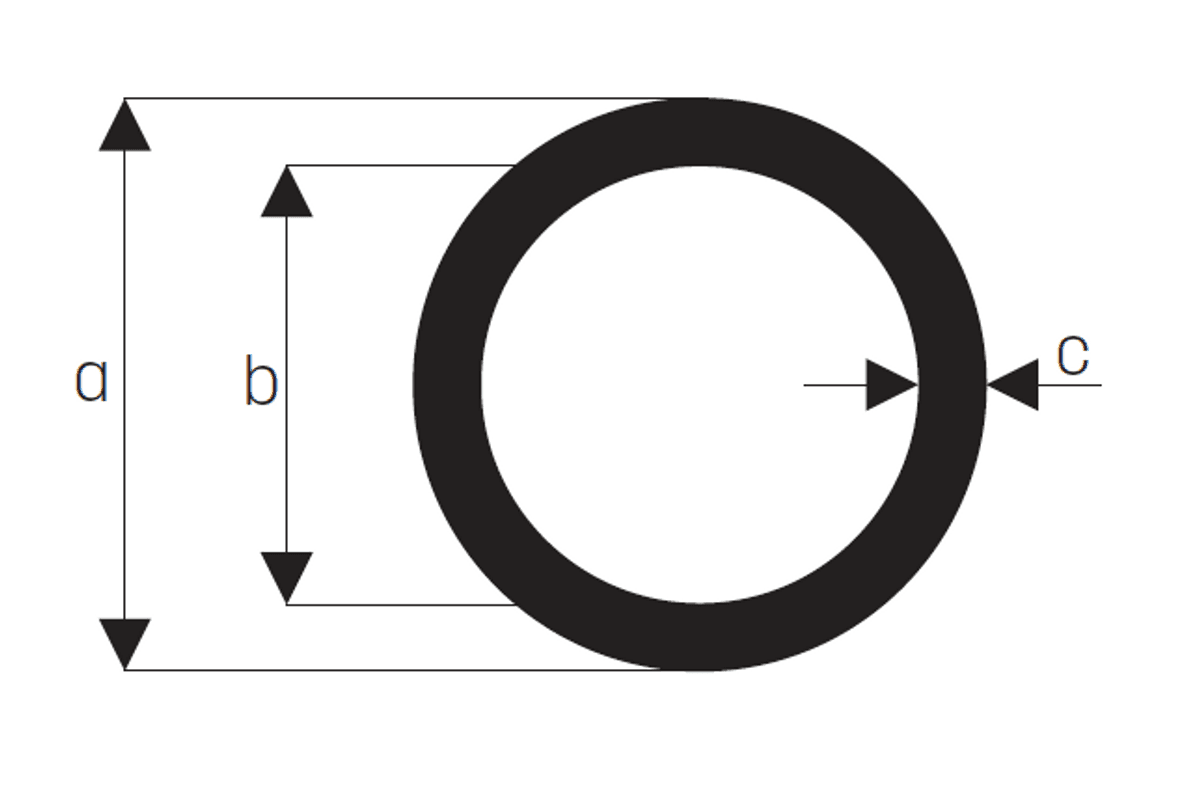

Extruded aluminium round tube in alloy EN AW-6063 T6, mill finish. Sizes from Ø6×1 mm to Ø230×35 mm (outside diameter × wall). Standard stock length 6 m; also cut in 1–5 m. Good corrosion resistance, weldability and machinability for architectural, structural and mechanical use.

Choose a size below and add it to your quote.

Available Sizes & Finishes

128 sizes available

Filters

Size D (mm)

Size t (mm)

6x1mm

0.042 kg/m

8x1mm

0.059 kg/m

9x1mm

0.068 kg/m

10x1mm

0.076 kg/m

10x2.5mm

0.159 kg/m

12x1mm

0.093 kg/m

12x1.2mm

0.11 kg/m

13x1mm

0.102 kg/m

13x1.2mm

0.12 kg/m

15x1mm

0.119 kg/m

15x1.5mm

0.172 kg/m

16x1.2mm

0.151 kg/m

16x2mm

0.238 kg/m

18x4mm

0.475 kg/m

19x1.2mm

0.181 kg/m

20x1mm

0.161 kg/m

20x1.2mm

0.191 kg/m

20x2mm

0.305 kg/m

22x1.2mm

0.212 kg/m

23x1mm

0.187 kg/m

25x1.5mm

0.299 kg/m

25x2mm

0.39 kg/m

25x2.5mm

0.477 kg/m

28x2mm

0.441 kg/m

30x1.5mm

0.363 kg/m

30x2mm

0.475 kg/m

30x2.5mm

0.583 kg/m

30x5mm

1.06 kg/m

35x2.5mm

0.689 kg/m

35x5mm

1.272 kg/m

36x11mm

2.333 kg/m

38x8mm

2.036 kg/m

40x1.5mm

0.49 kg/m

40x2mm

0.645 kg/m

40x2.5mm

0.795 kg/m

40x5mm

1.484 kg/m

40x10mm

2.545 kg/m

40.5x10.88mm

2.734 kg/m

40.5x13.75mm

3.12 kg/m

42x3mm

0.992 kg/m

45x2.5mm

0.901 kg/m

45x5mm

1.696 kg/m

45x10mm

2.969 kg/m

50x1.5mm

0.617 kg/m

50x1.65mm

0.677 kg/m

50x2mm

0.814 kg/m

50x2.5mm

1.007 kg/m

50x3mm

1.196 kg/m

50x5mm

1.909 kg/m

50x10mm

3.393 kg/m

50x15mm

4.453 kg/m

51x11mm

3.732 kg/m

55x2.3mm

1.028 kg/m

55x5mm

2.121 kg/m

57x12mm

4.58 kg/m

60x2mm

0.984 kg/m

60x2.5mm

1.219 kg/m

60x3mm

1.45 kg/m

60x5mm

2.333 kg/m

60x10mm

4.241 kg/m

60x15mm

5.726 kg/m

61.4x24.45mm

7.663 kg/m

65x12.5mm

5.567 kg/m

70x1.5mm

0.872 kg/m

70x2mm

1.154 kg/m

70x2.5mm

1.431 kg/m

70x10mm

5.089 kg/m

70x15mm

6.998 kg/m

70x20mm

8.482 kg/m

75x2mm

1.238 kg/m

75x2.5mm

1.537 kg/m

75x5mm

2.969 kg/m

80x2mm

1.323 kg/m

80x5mm

3.181 kg/m

80x10mm

5.938 kg/m

80x13mm

7.388 kg/m

80x20mm

10.179 kg/m

82x12mm

7.125 kg/m

85x2.5mm

1.749 kg/m

85x5mm

3.393 kg/m

89x2.5mm

1.834 kg/m

90x2mm

1.493 kg/m

90x2.5mm

1.856 kg/m

90x5mm

3.605 kg/m

90x12.5mm

8.217 kg/m

90x20mm

11.875 kg/m

90x25mm

13.784 kg/m

100x1.5mm

1.253 kg/m

100x2mm

1.663 kg/m

100x2.5mm

2.068 kg/m

100x3mm

2.468 kg/m

100x5mm

4.029 kg/m

100x10mm

7.634 kg/m

100x15mm

10.815 kg/m

100x20mm

13.572 kg/m

110x5mm

4.453 kg/m

110x15mm

12.087 kg/m

110x28mm

19.475 kg/m

114x2.8mm

2.641 kg/m

115x3mm

2.85 kg/m

120x2mm

2.002 kg/m

120x5mm

4.877 kg/m

120x10mm

9.331 kg/m

120x30mm

22.902 kg/m

125x2.5mm

2.598 kg/m

140x4mm

4.614 kg/m

140x30mm

27.992 kg/m

142x36mm

32.368 kg/m

150x2.5mm

3.128 kg/m

150x10mm

11.875 kg/m

160x3mm

3.995 kg/m

160x35mm

37.11 kg/m

170x5mm

6.998 kg/m

170x35mm

40.079 kg/m

180x6mm

8.856 kg/m

180x15mm

20.994 kg/m

180x30mm

38.17 kg/m

183x4.25mm

6.444 kg/m

200x3mm

5.013 kg/m

200x4mm

6.65 kg/m

200x10mm

16.116 kg/m

200x15mm

23.538 kg/m

200x20mm

30.536 kg/m

200x30mm

43.26 kg/m

200x35mm

48.985 kg/m

220x10mm

17.813 kg/m

220x15mm

26.083 kg/m

230x35mm

57.892 kg/m

Technical guides

Metal weight calculator

Free metal weight calculator: kg/m and total weight of steel, stainless and aluminium tubes, bars, angles and sheet. Formulas and densities explained.

→

Product Information

Material Grade

EN AW-6063 T6

Manufacturing Standard

EN 755-2

Material Type
