Aluminium L Angle 30mm x 27mm x 1.8mm

Description

The Aluminium L Angle 30mm x 27mm x 1.8mm is a precisely extruded aluminium unequal angle designed for structural reinforcement, edge framing, and compact installations. Manufactured from EN AW-6063 aluminium alloy in T6 temper, this aluminium l section combines high corrosion resistance with ease of machining and excellent surface quality.

Its slightly offset geometry—with a 30mm longer leg and a 27mm shorter leg—makes this l shape aluminium profile ideal for detailed fabrication work where minimal dimensional difference is required. Frequently used in architectural framing, protective trims, lightweight structural supports, and modular furniture production.

Standard mill finish is provided. Powder coating and anodised surface options are available to meet specific design or durability requirements.

We supply aluminium l profiles in bulk to manufacturers, engineers, and contractors across various industries.

➤ Minimum order quantity: 500 kg.

➤ Worldwide delivery via road, sea, or air freight.

Specification	Value

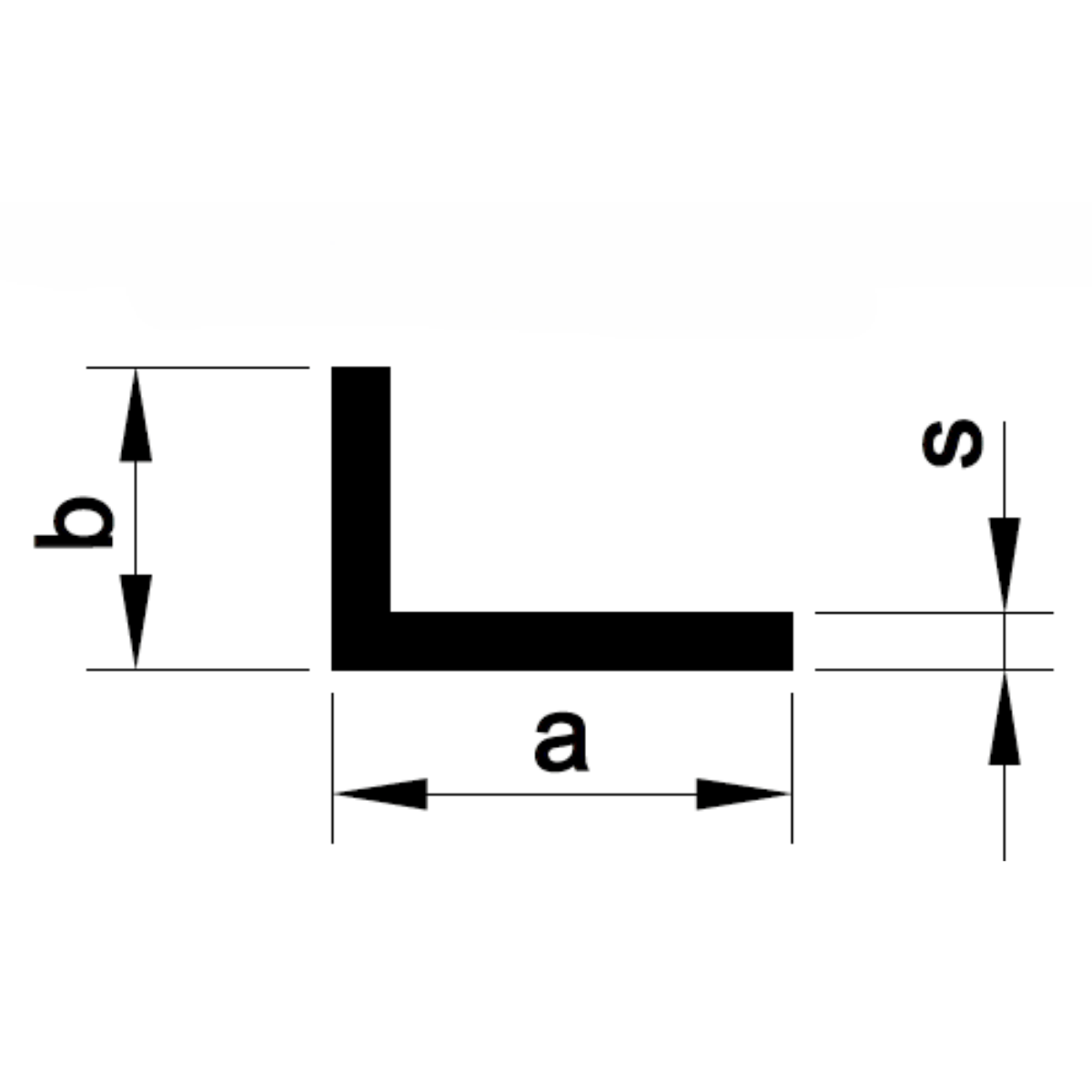

Longer Leg (a)	30 mm
Shorter Leg (b)	27 mm
Wall Thickness (s)	1.8 mm
Weight per metre	0.269 kg
Standard Length	6 metres
Finish Options	Mill finish, powder-coated, anodised

EN AW-6063

Material Specification

Alloy	AlMgSi0.5
Temper	T6
Specific Weight	2.71 gr/cm³
Tensile Strength	215 MPa
Yield Strength	170 MPa
Shear Strength	130 MPa
Hardness	70 HB
Elongation	6%
Elasticity Modulus	6.89 GPa
Expansion Coefficient	23.4 (20–100°C)
Coating Thickness	> 60 micron
Anodizing Thickness	10–25 micron

Chemical Composition

Element	Range
Silicon (Si)	0.20 – 0.60
Iron (Fe)	max. 0.35
Copper (Cu)	max. 0.10
Manganese (Mn)	max. 0.10
Magnesium (Mg)	0.45 – 0.90
Zinc (Zn)	max. 0.10
Titanium (Ti)	max. 0.10
Chromium (Cr)	max. 0.10
Other Elements (each)	max. 0.05
Other Elements (total)	max. 0.15
