Aluminium Flat Bar 60mm x 5mm

Description

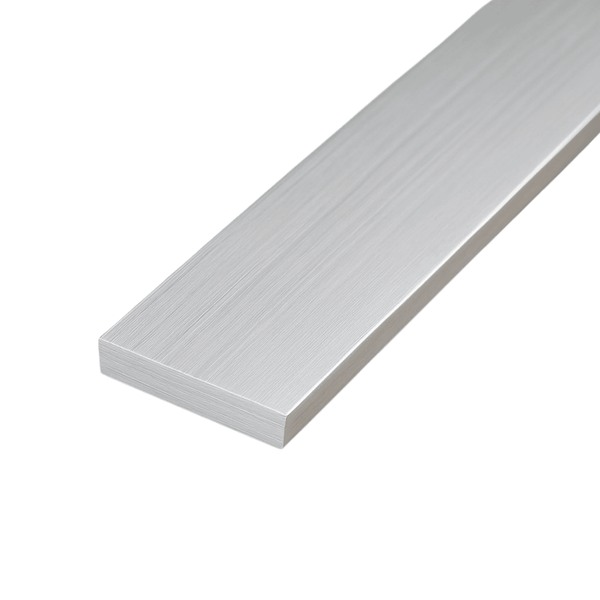

The 60mm x 5mm aluminium flat bar is a sturdy, precision-extruded profile produced from EN AW-6063 aluminium alloy in T6 temper. Its robust thickness and extended surface width make it a reliable choice for medium-to-heavy-duty applications across various industrial and architectural sectors.

Typical uses include load-distributing brackets, structural supports, equipment framing, and fabrication components where both rigidity and corrosion resistance are essential. The profile performs well in CNC machining, cutting, and drilling operations, and its smooth mill finish enables easy integration into production environments.

Custom surface treatments such as anodising and powder coating are available for improved durability and aesthetic appeal.

➤ Minimum order quantity: 500 kg.

➤ Worldwide delivery via road, sea, or air freight.

Specification	Value

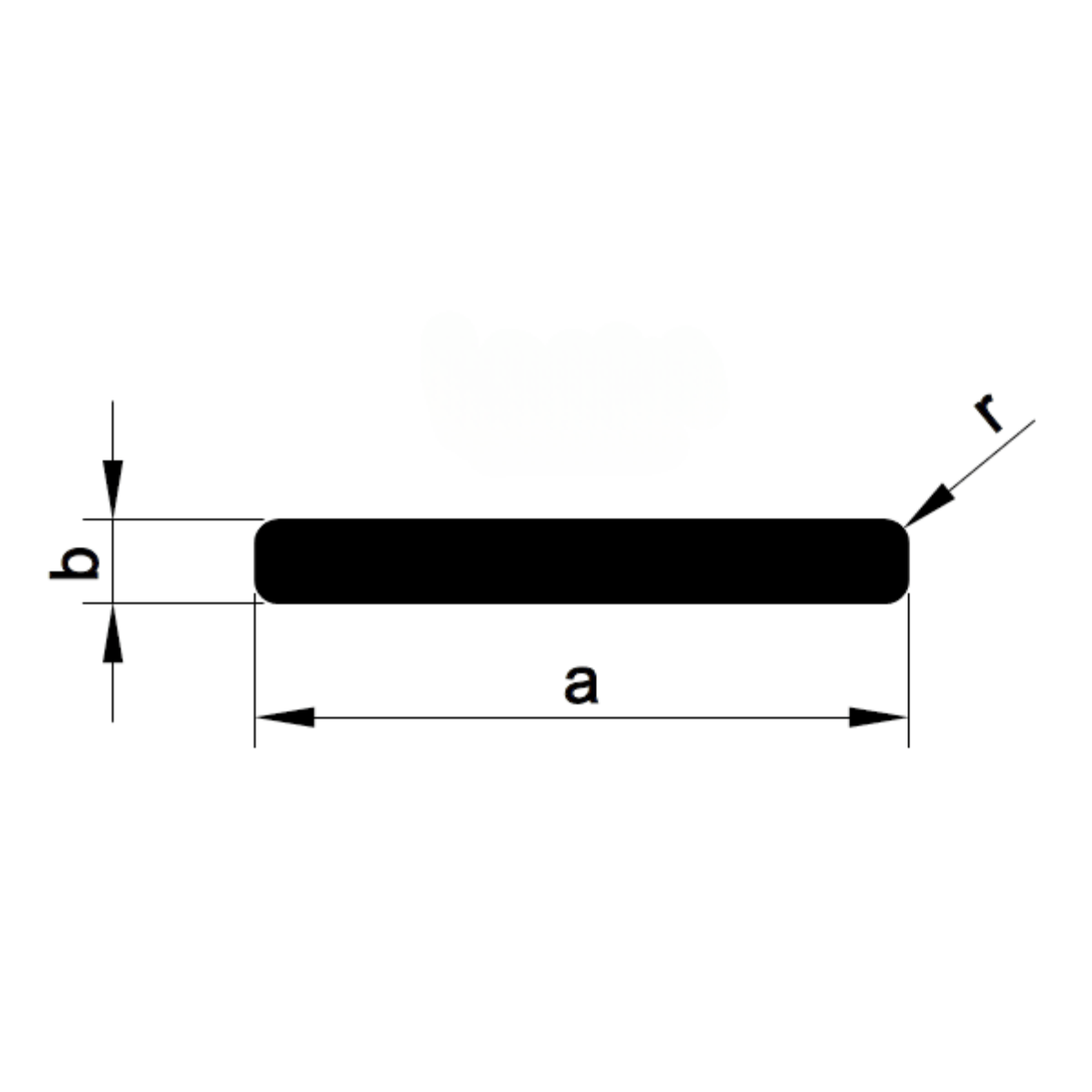

Width (a)	60 mm
Thickness (b)	5 mm
Corner Radius (r)	1 mm
Weight per metre	0.811 kg
Standard Length	6 metres
Finish Options	Mill finish, powder-coated, anodised

EN AW-6063

Material Specification

Alloy	AlMgSi0.5
Temper	T6
Specific Weight	2.71 gr/cm³
Tensile Strength	215 MPa
Yield Strength	170 MPa
Shear Strength	130 MPa
Hardness	70 HB
Elongation	6%
Elasticity Modulus	6.89 GPa
Expansion Coefficient	23.4 (20–100°C)
Coating Thickness	> 60 micron
Anodizing Thickness	10–25 micron

Chemical Composition

Element	Range
Silicon (Si)	0.20 – 0.60
Iron (Fe)	max. 0.35
Copper (Cu)	max. 0.10
Manganese (Mn)	max. 0.10
Magnesium (Mg)	0.45 – 0.90
Zinc (Zn)	max. 0.10
Titanium (Ti)	max. 0.10
Chromium (Cr)	max. 0.10
Other Elements (each)	max. 0.05
Other Elements (total)	max. 0.15
