Aluminium Flat Bar 13.4mm x 1.4mm

Description

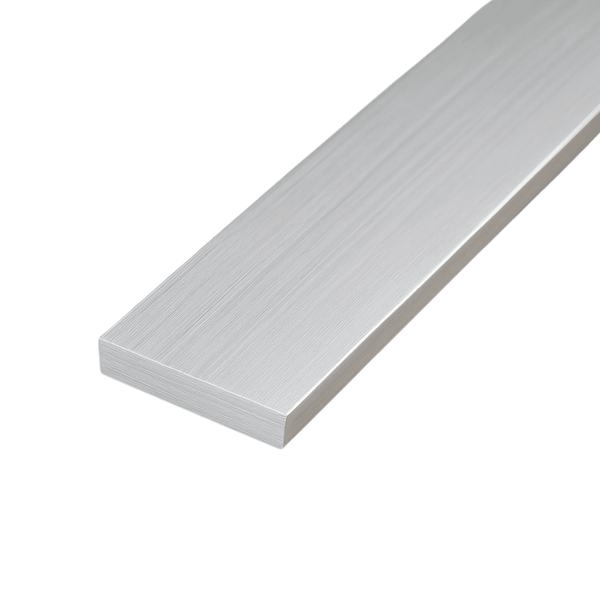

The 13.4mm x 1.4mm aluminium flat bar is a slim and lightweight extrusion profile manufactured from EN AW-6063 aluminium alloy in T6 temper. Despite its minimal thickness, it offers excellent corrosion resistance, good dimensional stability, and ease of fabrication.

Ideal for lightweight frameworks, panel edge trims, decorative elements, and non-load-bearing structural applications, this flat bar is suitable for CNC machining, cutting, and bending processes.

Each bar is supplied in 6-metre standard lengths with a mill finish. Anodised or powder-coated options are available on request. Custom lengths and cut-to-size services can be arranged for volume orders.

➤ Minimum order quantity: 500 kg.

➤ Delivery available worldwide by land, sea, or air freight.

Specification	Value
Width (a)	13.4 mm
Thickness (b)	1.4 mm
Corner Radius (r)	0.3 mm
Weight per metre	0.051 kg
Standard Length	6 metres
Finish Options	Mill finish, powder-coated, anodised

EN AW-6063

Material Specification

Alloy	AlMgSi0.5
Temper	T6
Specific Weight	2.71 gr/cm³
Tensile Strength	215 MPa
Yield Strength	170 MPa
Shear Strength	130 MPa
Hardness	70 HB
Elongation	6%
Elasticity Modulus	6.89 GPa
Expansion Coefficient	23.4 (20–100°C)
Coating Thickness	> 60 micron
Anodizing Thickness	10–25 micron

Chemical Composition

Element	Range
Silicon (Si)	0.20 – 0.60
Iron (Fe)	max. 0.35
Copper (Cu)	max. 0.10
Manganese (Mn)	max. 0.10
Magnesium (Mg)	0.45 – 0.90
Zinc (Zn)	max. 0.10
Titanium (Ti)	max. 0.10
Chromium (Cr)	max. 0.10
Other Elements (each)	max. 0.05
Other Elements (total)	max. 0.15
