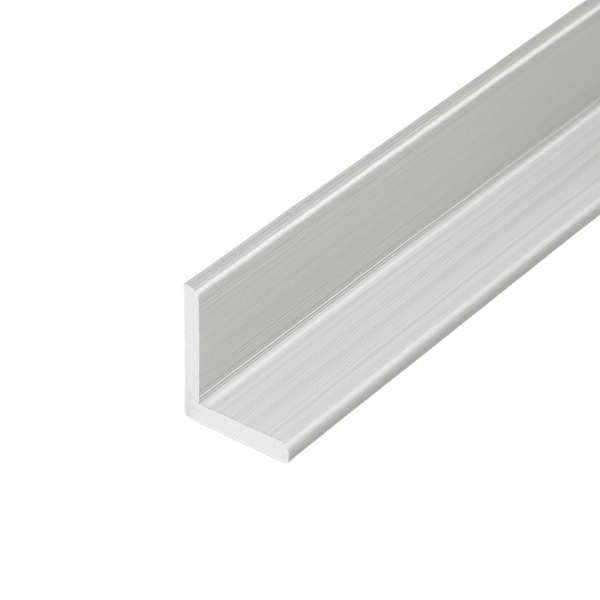

Aluminium Angle 20mm x 20mm x 1mm

Description

The 20mm x 20mm x 1mm aluminium angle is a lightweight, economical profile designed for non-load-bearing trim, edge protection, and decorative framing applications. Manufactured from EN AW-6063 aluminium alloy in T6 temper, this slim profile offers excellent corrosion resistance and is easy to cut, drill, and surface treat.

Its compact dimensions and thin wall structure make it especially suitable for interior fittings, retail displays, signage frames, and low-stress structural use where aesthetics and weight reduction are priorities.

Supplied in standard 6-metre lengths with a clean mill finish. Custom surface treatments such as anodising or powder coating can be applied depending on project requirements.

We supply this aluminium angle profile in bulk to manufacturers, assemblers, and project contractors who need consistent quality and scalable volume.

➤ Minimum order quantity: 500 kg.

➤ Worldwide delivery via road, sea, or air freight.

Specification	Value
Side Length (a)	20 mm
Wall Thickness (s)	1 mm
Weight per metre	0.105 kg
Standard Length	6 metres
Finish Options	Mill finish, powder-coated, anodised

EN AW-6063

Material Specification

Alloy	AlMgSi0.5
Temper	T6
Specific Weight	2.71 gr/cm³
Tensile Strength	215 MPa
Yield Strength	170 MPa
Shear Strength	130 MPa
Hardness	70 HB
Elongation	6%
Elasticity Modulus	6.89 GPa
Expansion Coefficient	23.4 (20–100°C)
Coating Thickness	> 60 micron
Anodizing Thickness	10–25 micron

Chemical Composition

Element	Range
Silicon (Si)	0.20 – 0.60
Iron (Fe)	max. 0.35
Copper (Cu)	max. 0.10
Manganese (Mn)	max. 0.10
Magnesium (Mg)	0.45 – 0.90
Zinc (Zn)	max. 0.10
Titanium (Ti)	max. 0.10
Chromium (Cr)	max. 0.10
Other Elements (each)	max. 0.05
Other Elements (total)	max. 0.15
