Aluminium Flat Bar
Description
An aluminium flat bar is a versatile profile widely used in construction, machinery, and decorative applications. Known for its strength, lightweight structure, and corrosion resistance, it is an excellent choice for both industrial and aesthetic projects.
A mill-finish aluminium flat bar is commonly preferred for structural and mechanical applications. Lighter, smaller flat bars are ideal for use as decorative trims, while heavier, larger bars are used in the production of smaller components for the automotive, rail, and general manufacturing industries.
A powder-coated aluminium flat bar combines strength with durability and visual appeal. It is widely used in architectural projects and heavy-duty environments, providing resistance to UV exposure and harsh weather conditions, while maintaining an attractive finish for both interior and exterior applications.
An anodised aluminium flat bar offers superior resistance to corrosion, UV degradation, and surface wear, making it particularly suitable for outdoor use in demanding environments. It is a reliable choice for projects that require long-lasting performance and a premium finish.
Each flat bar is extruded from 6063-T5 aluminium alloy, known for its excellent machinability and strength. Profiles come in a standard length of 6 metres, with custom cutting available to meet precise dimensional requirements. All products are manufactured in compliance with EN 755-1 standards, ensuring consistency and quality.
Based in Istanbul, Turkey, we provide worldwide delivery through multiple shipping options, including sea, land, air, and intermodal freight. Contact us for customised solutions, quotations, or technical assistance.
Technical Specification
Profile Type Aluminium Flat Bar Material 6063-T5 Aluminium Alloy Standard Length 6 metres Surface Options Mill Finish, Powder-Coated, Anodised Custom Cutting Available upon request Manufacturing Standard Produced in accordance with EN 755-1
Profile Type | Aluminium Flat Bar |
Material | 6063-T5 Aluminium Alloy |
Standard Length | 6 metres |
Surface Options | Mill Finish, Powder-Coated, Anodised |
Custom Cutting | Available upon request |
Manufacturing Standard | Produced in accordance with EN 755-1 |
/fit-in/1200x1200/alternametals/Aluminium-Flat-Bar-2-Y3Qm.png)

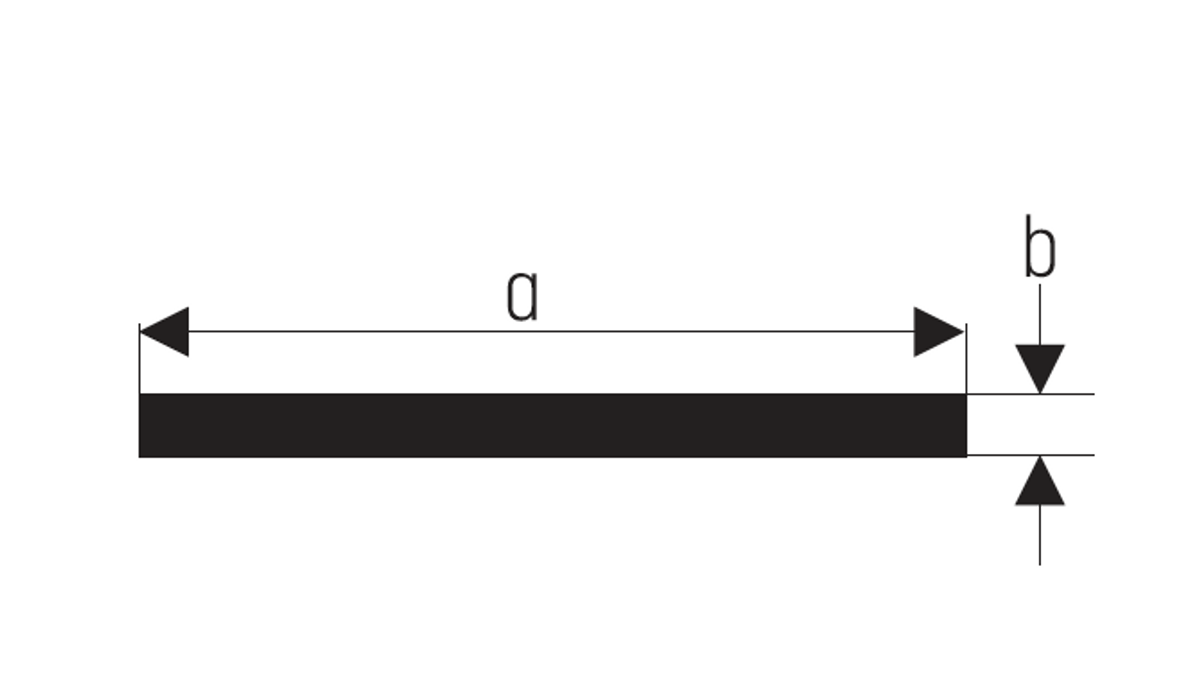

Standard Sizes and Mass per Metre
a (mm) | b (mm) | Kg/m |
6 | 12 | 0.195 |
7.5 | 1.2 | 0.024 |
10 | 2 | 0.054 |
10 | 3 | 0.081 |
15 | 1.5 | 0.061 |
15 | 2 | 0.081 |
16 | 7 | 0.304 |
16 | 2 | 0.087 |
19 | 3.15 | 0.162 |
19 | 2.8 | 0.144 |
19.05 | 1.52 | 0.078 |
19.05 | 1.6 | 0.082 |
20 | 6 | 0.325 |
20 | 4 | 0.216 |
20 | 3 | 0.163 |
20 | 2 | 0.108 |
20 | 10 | 0.542 |
23.5 | 4 | 0.255 |
25 | 2 | 0.135 |
25 | 10 | 0.677 |
25.4 | 1.52 | 0.104 |
30 | 1.5 | 0.122 |
30 | 2 | 0.162 |
32 | 3 | 0.260 |
35 | 5 | 0.474 |
30 | 10 | 0.813 |
40 | 10 | 1.084 |
50 | 10 | 1.355 |
52 | 5 | 0.711 |
55 | 2 | 0.295 |
60 | 10 | 1.626 |
64 | 5 | 0.867 |
65 | 0.9 | 0.159 |
70 | 10 | 1.897 |
80 | 10 | 2.168 |
100 | 10 | 2.710 |
100 | 19 | 5.149 |
100 | 30 | 8.130 |
101.6 | 6.35 | 1.747 |
110 | 5 | 1.491 |
120 | 10 | 3.252 |
120 | 15 | 4.878 |
130 | 15 | 5.264 |
150 | 10 | 4.065 |
150 | 15 | 6.098 |
150 | 20 | 8.130 |
200 | 10 | 5.420 |
