Aluminium Angle
Description
An aluminum angle (equal leg) is a versatile extruded profile designed for structural, architectural, and decorative applications. Known for its strength, lightweight properties, and corrosion resistance, it is widely used in framing, joining, and finishing solutions for both indoor and outdoor projects.
A mill-finish aluminum angle is commonly used for corner joining in structural and framing applications. Typical uses include window and door frames, electronic equipment housings, shelving structures, glass frame closures, assembly lines, and conveyor systems. Its natural aluminum surface offers excellent machinability and formability, making it a cost-effective solution for indoor projects.
A powder-coated aluminum angle is ideal for architectural applications, such as building facades, curtain walls, decorative trims, and window systems. It is also used in the construction of workstations, storage racks, and equipment frames. The powder coating provides a durable and weather-resistant finish that maintains its appearance under UV exposure and harsh conditions, ensuring long-term performance for both indoor and outdoor environments.
An anodized aluminum angle is engineered for premium exterior and high-performance applications, including facade systems, door frames, window frames, and architectural cladding. It is also widely used in LED housing and lighting fixtures due to its heat dissipation properties and enhanced corrosion resistance. The anodized finish ensures long-lasting protection against weathering, UV rays, and abrasion.
We offer precision cutting services to match your exact dimensional requirements. Contact us for custom quotes and technical support.
Based in Istanbul, Turkey, we serve customers worldwide with our premium extruded aluminium profile products. Utilizing a variety of freight options, including sea, land, air, and intermodal, we ensure efficient delivery to your doorstep.
Technical Specification
Profile Type | Aluminium (Equal Leg) Angle |
Material | 6063-T5 Aluminium Alloy |
Standard Length | 6 metres |
Surface Options | Mill Finish, Powder-Coated, Anodised |
Custom Cutting | Available upon request |
Manufacturing Standard | Produced in accordance with EN 755-1 |
/fit-in/1200x1200/alternametals/Aluminium-Angle-2-TGcF.png)

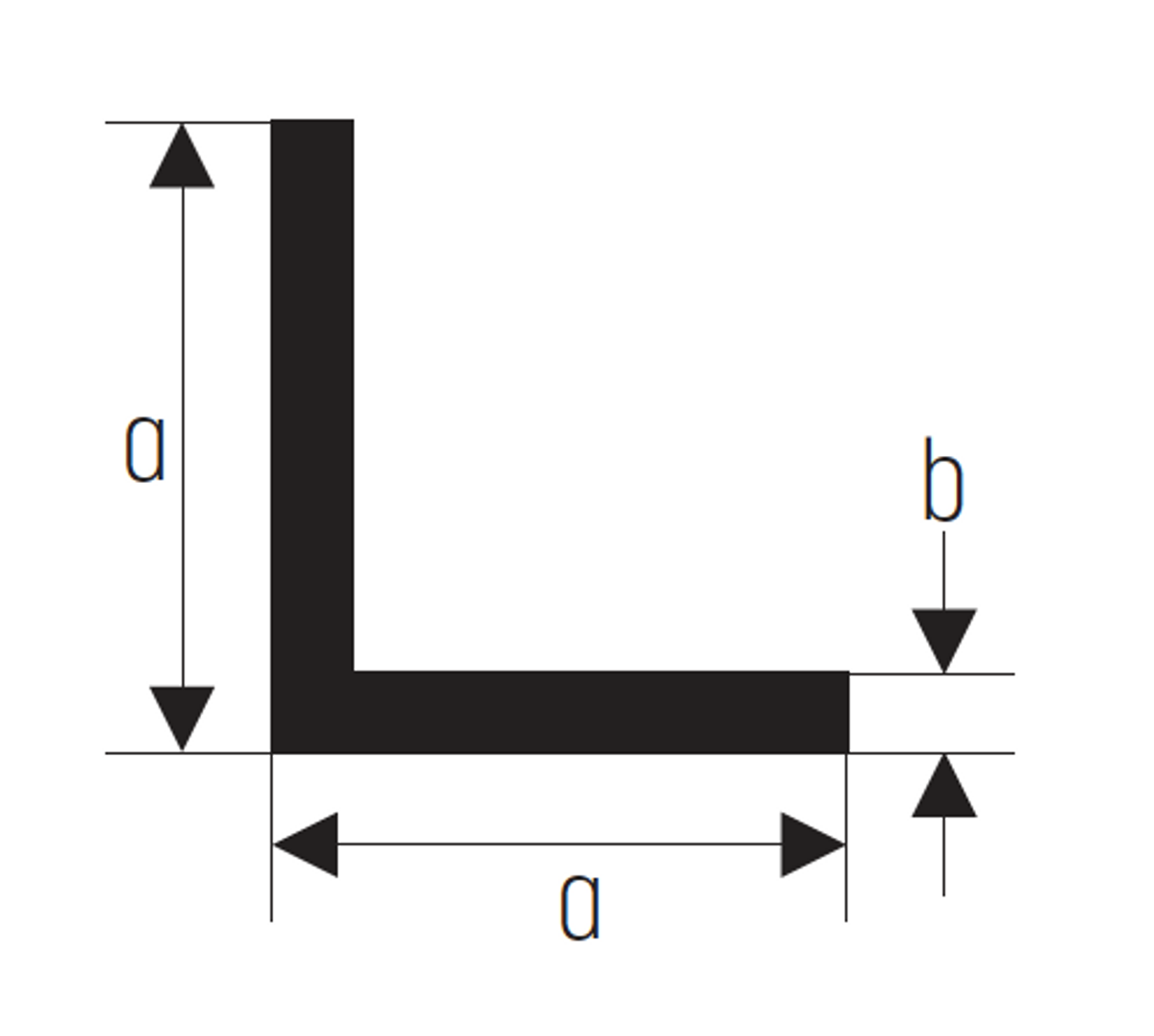

Standard Sizes and Mass per Metre
a (mm) | b (mm) | Kg/m |
10 | 1 | 0.051 |
10 | 1 | 0.051 |
12 | 1.25 | 0.077 |
12.7 | 1.27 | 0.083 |
15 | 1 | 0.078 |
15 | 1 | 0.079 |
15 | 1 | 0.116 |
19 | 0.8 | 0.081 |
19 | 1.52 | 0.150 |
19.05 | 1.27 | 0.126 |
20 | 1.2 | 0.126 |
20 | 1.5 | 0.157 |
20 | 2 | 0.206 |
20 | 1 | 0.105 |
25 | 1 | 0.133 |
25 | 1.2 | 0.158 |
25 | 1.5 | 0.197 |
25 | 1.6 | 0.210 |
25.4 | 1.27 | 0.170 |
25.4 | 1.52 | 0.202 |
28.5 | 0.9 | 0.137 |
30 | 1 | 0.160 |
30 | 1.2 | 0.191 |
30 | 1.5 | 0.237 |
30 | 2 | 0.314 |
30 | 2 | 0.463 |
30 | 4 | 0.607 |
35 | 3 | 0.544 |
40 | 1.2 | 0.256 |
40 | 1.5 | 0.319 |
40 | 1.5 | 0.319 |
40 | 2 | 0.423 |
40 | 4 | 0.824 |
50 | 1.5 | 0.400 |
50 | 5 | 1.287 |
80 | 5 | 2.100 |
100 | 10 | 5.149 |
